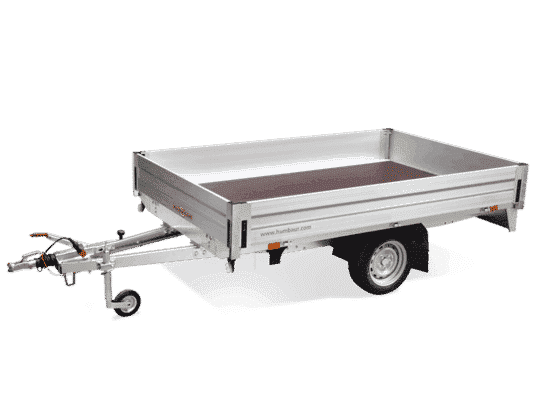

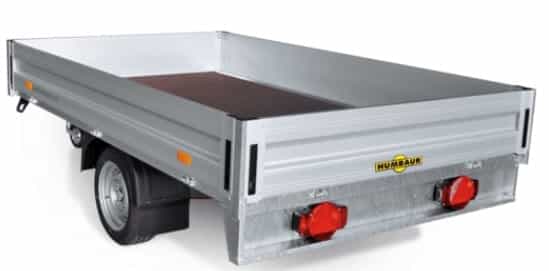

HN 132616 Humbaur | single-axle high loader low HN, braked, 1300 kg total weight*.

Practical and well thought out: With the side walls folded down, you can easily load your goods onto the HN flatbed trailer with a forklift. Its low loading height makes handling easier for you. The pull rings of our trailer can withstand pulling forces of 400 kg. This means you can also transport heavy loads safely. DEKRA checked this.

 3.299,00  3.586,00 inkl. MwSt.

Print Friendly, PDF & Email

Become a proud trailer owner today!

We deliver throughout Austria! We trade in your OLD! Convenient partial or installment payment possible!

Basic equipment as a quality standard – see your benefits here

  • V drawbar hot-dip galvanized

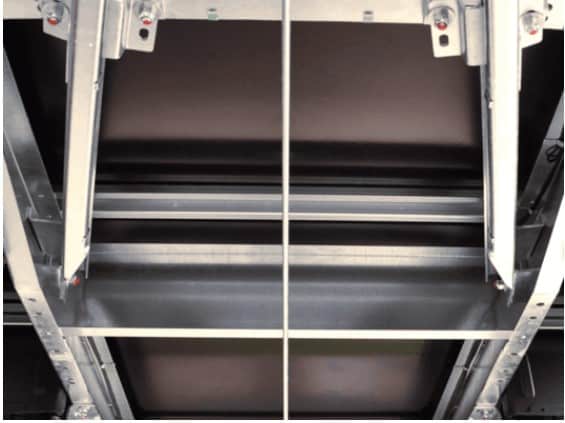

  • special low frame construction
  • 13-pin connector and reversing light
  • Base plate 18 mm thick
  • Side walls made of anodised aluminum with countersunk locks, cpl. detachable

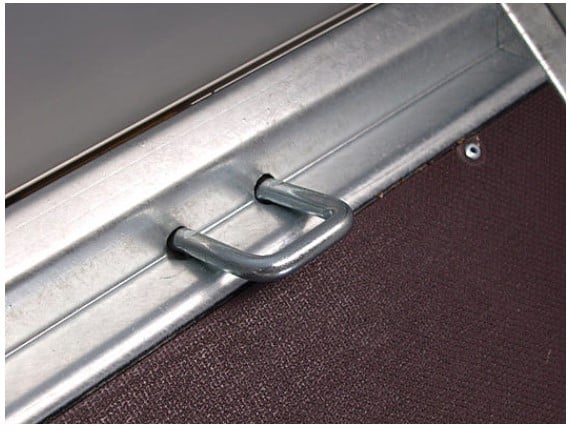

  • 4 lashing brackets integrated in the V outer frame profile, tensile force 400 kg per lashing bracket, Dekra tested
  • jockey wheel

Technical specifications

Trailer type: single axle
Type of construction: aluminium
Weight: 338 kg
Total weight: 1,300 kg
Payload: 962 kg
Inner length: 2,650 mm
Total length: 3,920mm
Internal width: 1,650 mm
Overall width: 1,713mm
Internal height: 300mm
Total height: 930mm
Loading height: 625 mm
Tires: 13 inches



Other designs and models available!
