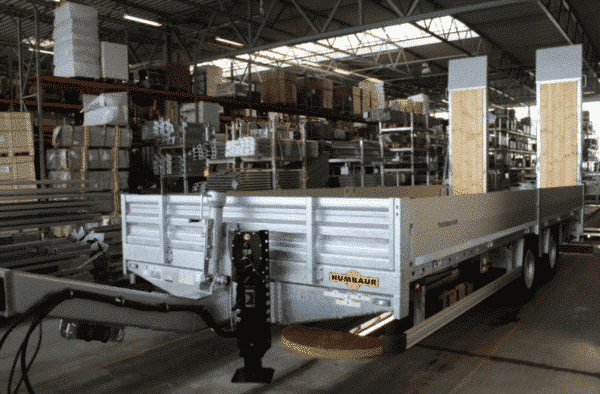

Humbaur heavy-duty trailer, construction machinery trailer, HBTZ 197224 BS air-suspended, with twin tires and beveled rear area, tandem high loader•

Become a proud trailer owner today!

We deliver throughout Austria! We trade in your OLD! Convenient partial or installment payment possible!

Basic equipment as a quality standard – see your benefits here

• Steel fenders 8-fold with anti-spray mats
• 2 wheel chocks with holder
• Side collision protection, foldable, from the beginning of the bridge to the 1st axle
• Contour marking on side and back
• Space for a two-line license plate on the left ramp
• Chassis : SAF low-loader axles with closed S-cam brakes, air suspension with raise/lower function, wheelbase 1400 mm, twin tires, tires of the manufacturer’s choice
• Brake system : EBS brake system with stability program according to ECE directive, spring-loaded parking brake, 2 non-interchangeable coupling heads red/yellow at the front ISO 1728, EBS plug-in connection ISO 7638 (note: towing vehicle must have an ABS/EBS connection)
• Towing device : Galvanized towing eye, with DIN screw towing eye Ø50 mm, continuously adjustable via reinforced height adjustment
• Electrics: 24 volt lighting system with multi-chamber rear lights and LED side marker lights, 15-pin connector for lighting
• Bridge : solid, welded chassis frame, hot-dip galvanised, with inserted cross members for maximum stability, wheel covers made of checkered steel plate, smooth outer frame, without lashing holes , floor covering made of 40 mm softwood planks, bulkhead 400 mm steel, hot-dip galvanised, pluggable
• Beveled loading area at the rear
• Load securing : 4 pairs of lashing points 10 to. Sunk in the bridge floor, 8 pairs of lashing points 2 to. In the outer frame
• Support : reinforced 12 to. Geared support winch with load and fast gear, 2 telescopic folding supports on the left and right at the rear of the vehicle
• Ramps : 2 massive foldable steel ramps, galvanised, laterally adjustable, ramp lifter 1 spring lifter per ramp, ramp lock with turnbuckle, ramp covering made of 50 mm softwood planks

Technical specifications

Maximum permissible total weight technically: 19000 kg

Drawbar load: 1000 kg

Curb weight approx. 4500 kg

Payload with standard equipment approx. 14500 kg

Internal bridge dimensions (LxW): 7200 mm x 2460 mm

Front wall height approx.: 400 mm

Loading height with unloaded vehicle approx.: 870 mm

Coupling height unloaded approx.: 750-1000 mm

Overall dimensions (LxWxH): 9380mm x 2550mm x 3700mm

Tires: 235/75 R17.5, 8-fold

Ramp dimensions (LxW): 3100 mm x 760 mm

Drive-up angle: approx. 11°

Parameters: 60.3 KN/45.2 KN

Other designs and models available!

Hundreds of trailers in stock and available immediately!

You can enter our 24-hour trailer show park anytime from MONDAY to SUNDAY.

All information without guarantee, subject to errors, spelling and typing errors.
Stated prices for stock items, new orders subject to price changes.
Prices are valid for Austria (incl. 20% VAT) and may differ in other countries.
Symbol photos, the actual design may differ from the picture.
Attention: Subject to prior sale and change! / Images may contain/show accessories/options for an additional charge!
All prices WITHOUT accessories!

Collection at the factory D-86368 – Gersthofen
Surcharge pickup in Poggersdorf € 1559,- incl. VAT
COC papers € 300,- incl. VAT
