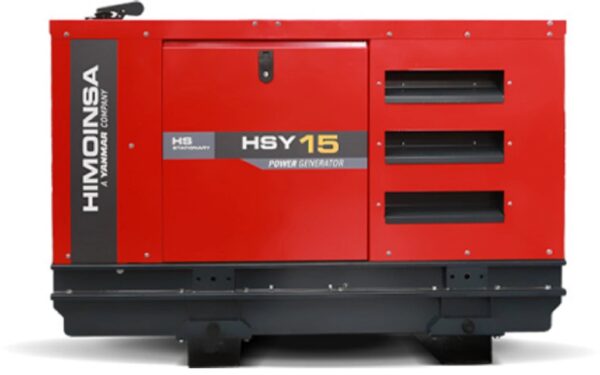

Diesel power generator, generator set Himoinsa HSY 15

Energy Himoinsa HSY 15 diesel generator

Shipping available upon request (delivery time upon request)

Motor:

• Rated power: 12.2 kW prp; 13.2 kW standby
• Manufacturer: YANMAR
• Model: 3TNV88FUGGEHR
• Engine type: Four-stroke diesel
• Injection type: Direct
• Type of intake: Natural
• Diameter x working path: 88 x 90
• Total engine displacement: 1.642
• Cooling system: Coolant
• Engine oil specifications: SAE 3 class 10W30 / API grade CD,CF
• Compression ratio: 20
• Fuel consumption in standby mode: 4.8
• Maximum oil quantity: 12.8
• Total coolant volume: 4.8
• Regulator type: Mechanical
• Dry type air filter
• Diesel engines
• four-stroke
• Water-cooled
• Electric starter 12V
• Cooler with pressure fan
• Mechanical control
• Dry air filter
• Protective devices for hot parts
• Protective devices for moving parts

Generator:

• Pole: 4
• Connection type (standard): Star – Series
• Coupling type: S-5 7″1/2
• Insulation protection class: Class H
• Mechanical protection rating (according to IEC-34-5): IP23
• Control system: Self-excited, brushless
• Voltage regulator: AVR (Electronic)
• Mounting type: Inset design
• Clutch system: Flexible disc
• Cover type: Standard (vacuum impregnation)

Version:

• Soundproofed version
• steel housing
• Vibration damper
• Fuel tank integrated into the housing
• Flow timer fuel level
• Emergency stop switch
• Aggregate box made of high-quality sheet metal
• High mechanical load capacity
• Low noise level
• Sound insulation based on high-density volcanic rock wool
• Surface powder-coated with epoxy polyester (salt spray test of over 1000 hours)
• Full maintenance access (water, oil and filter without removing the convertible top)
• Reinforced lifting hooks for lifting with a crane
• Hermetic housing (double-walled design to contain liquids)
• Drainage cap tank
• Drainage closure housing
• Housing designed for the installation of a mobile set
• High-performance steel silencer with -35db(A)
• Fuel transfer pump (optional)

Electrical system

• Electrical switchboard for control and circuit breakers, with measuring instruments and control center (depending on requirements and configuration)
• Four-pole thermomagnetic circuit breaker
• Adjustable differential protection (time-based and sensitivity-based), included as standard in the M5 and AS5 switchboards with thermomagnetic circuit breaker.
• Battery charger (included in generator sets with automatic control panel)
• Heating element (included as standard in units with automatic control panel)
• Three-phase generator for charging batteries with grounding connection
• Installed starter battery(ies) (including cable and mount)
• Electrical grounding connection with designated connection for deep ground rod (deep ground rod not included in delivery)
• Battery disconnect switch (optional)

Technical data:

Mass:

• Length: 1,725
• Height: 1,255
• Width: 750
• Maximum packaging volume: 1.62
• Weight including fluids in radiator and oil pan: 550
• Tank capacity: 100
• Autonomy: 23 hours
• Sound level: 62 dB(A) at 7m

Exhaust system:

• Maximum exhaust gas operating temperature: 450°C
• Exhaust gas flow rate during operation: 3.46 m³/min
• Maximum permissible back pressure: 1000 mmH2o

Required air volume:

• Maximum air flow rate for combustion: 66.5 m³/h
• Airflow from fan motor: 0.753 m³/h
• Airflow from fan/three-phase generator: 0.11 m³/h

Commissioning system:

• Starting power: 1.2
• Starting power: 1.63
• Recommended battery: 92
• Auxiliary voltage: 12

Fuel system:

• Fuel type: Diesel
• Fuel tank: 100
• Other fuel tank readings: 140, 180, 225, 385
