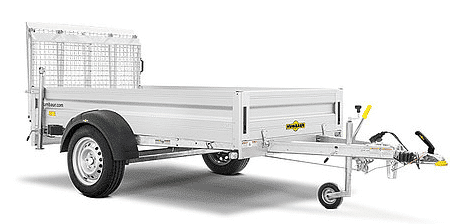

HA 132513 ÜFW 1-axle, with ramp, 1300kg/1008kg payload, 251x131x35 cm Braked, with front flap•
The HA 132513 loading ramp is based on the Humbaur HA models. These feature a unique frame/side wall construction made of sturdy, anodized aluminum. The 15 mm thick, multi-layered, waterproof bonded special wood floor with a non-slip phenolic resin coating is suitable for all applications. Thanks to its outstanding design, where the floor slides into the side walls, it can be easily replaced if damaged. The side walls incorporate six recessed lashing rings for load securing, each with a tensile strength of 400 kg (DEKRA tested). The high-quality materials, such as the hot-dip galvanized drawbars, and the meticulous workmanship make it a reliable and durable transport aid. Whether for transporting motorcycles, bicycles, or garden equipment, its wide range of accessories makes it versatile. The HA 132513 loading ramp also features a steel mesh ramp that enables safe loading and unloading of goods and can support loads of up to 500 kg. With a length of approximately 1750 mm when unfolded, the trailer achieves a favorable approach angle of 17°.
€ 2.806,00 € 3.051,00 VAT included.
Become a proud trailer owner today!
We deliver throughout Austria! We'll trade in your old one! Convenient partial or installment payments possible!
Basic equipment as a quality standard – here you can see your advantages
- V-drawbar, hot-dip galvanized
- 13-pin connector and reversing light
- Base plate 15 mm thick
- Sideboards made of anodized aluminum
- Front flap with recessed latches
- Folding steel mesh drive-over barrier, approx. 1750 mm long, with eccentric locks at the rear, max. load capacity 500 kg, height when folded approx. 965 mm
- Six lashing rings integrated into the side walls, tensile strength 400 kg per lashing ring, Dekra tested
- support wheel
- 2 sliding supports installed
| Trailer type: Single axle | Construction type: Aluminum | Weight: 292 kg | Total weight: 1,300 kg |
| Payload: 1,008 kg | Internal length: 2,510 mm | Total length: 3,904 mm | Internal width: 1,310 mm |
| Overall width: 1,805 mm | Internal height: 350 mm | Overall height: 1,519 mm | Loading height: 530 mm, 14 inches |
Other versions and models available!
Hundreds of trailers in stock and available immediately!
You can enter our 24-hour trailer showroom anytime from Monday to Sunday.
We love fans!
All information is provided without guarantee. Subject to changes, errors, and typographical errors.
The prices quoted are for items in stock or standard versions. We expressly reserve the right to change prices for new orders.
All prices are in euros and apply to Austria including or excluding VAT.
Prices may vary in other countries due to different tax rates or shipping costs. The products shown are for illustrative purposes only and are symbolic images.
The actual product may vary in features, color, shape, or design. Tires, rims, or accessories shown are not binding and may differ from the scope of delivery.
| Axles | single-axle |
|---|---|
| Weight | 1300 kg |
| length | 2 m |
| baseboard | 30 cm |
