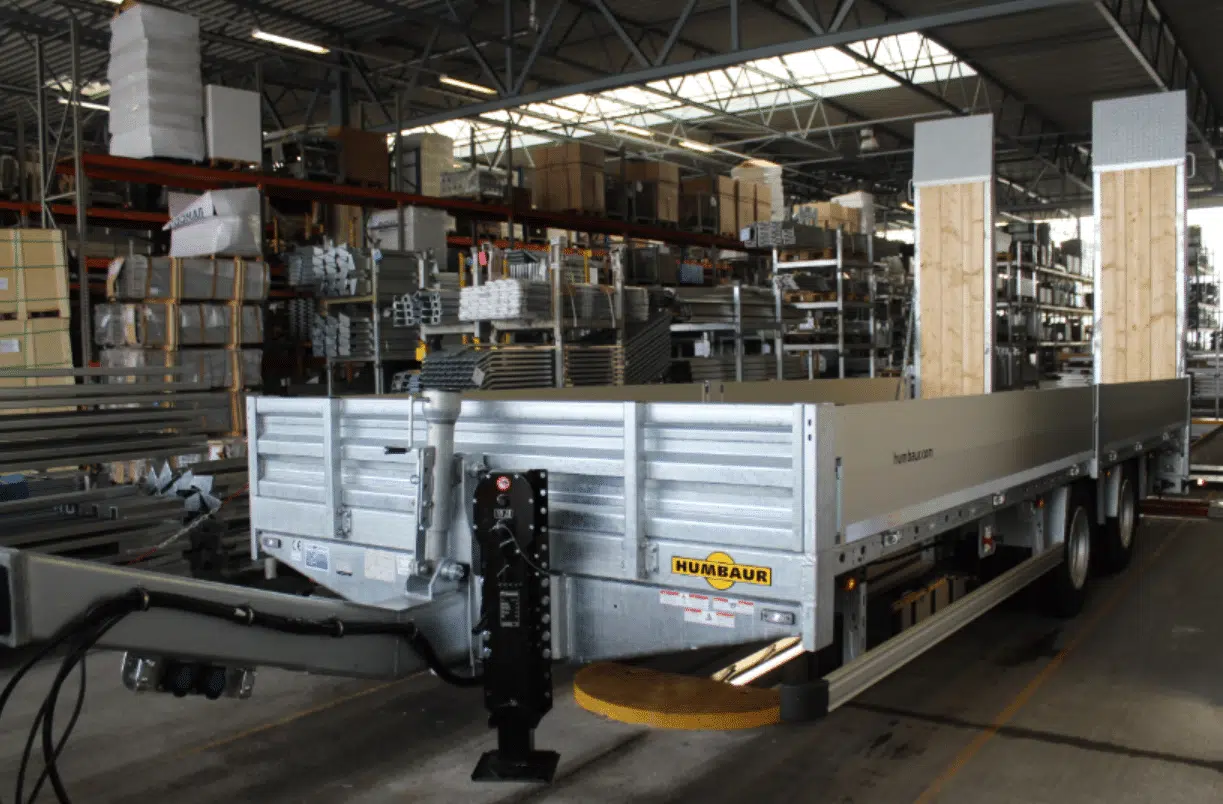

Humbaur heavy-duty trailer, construction machinery trailer, HBTZ 197224 BS air-sprung, with twin tires and beveled rear section, tandem flatbed trailer

Become a proud trailer owner today!

We deliver throughout Austria! We'll trade in your old one! Convenient partial or installment payments possible!

Basic equipment as a quality standard – here you can see your advantages

• Steel fenders (8-fold) with anti-spray mats
• 2 wheel chocks with holder
• Foldable side underrun protection, from the beginning of the bridge to the 1st axle
• Contour marking on the side and rear

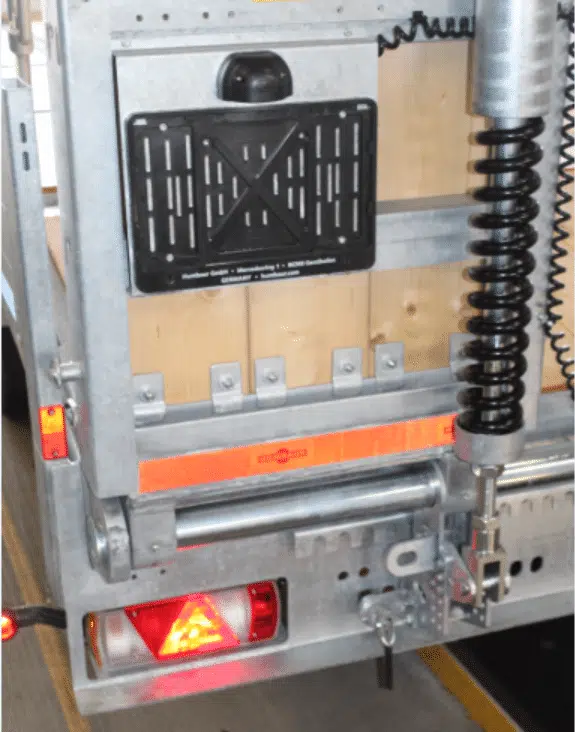

• Space for a two-line license plate on the left ramp
• chassisLow-loader axles from SAF with enclosed S-cam brakes, air suspension with raise/lower function, wheelbase 1400 mm, twin tires, tires of the manufacturer's choice
• Brake system: EBS braking system with stability program according to ECE directive, spring-loaded parking brake, 2 interchangeable red/yellow coupling heads at the front ISO 1728, EBS connector ISO 7638 (Note: Towing vehicle must have ABS/EBS connection)
• Traction deviceGalvanized drawbar with DIN screw drawbar eye Ø50 mm, infinitely adjustable via reinforced height adjustment
• Electrical system: 24-volt lighting system with multi-chamber taillights and LED side marker lights, 15-pin connector for lighting

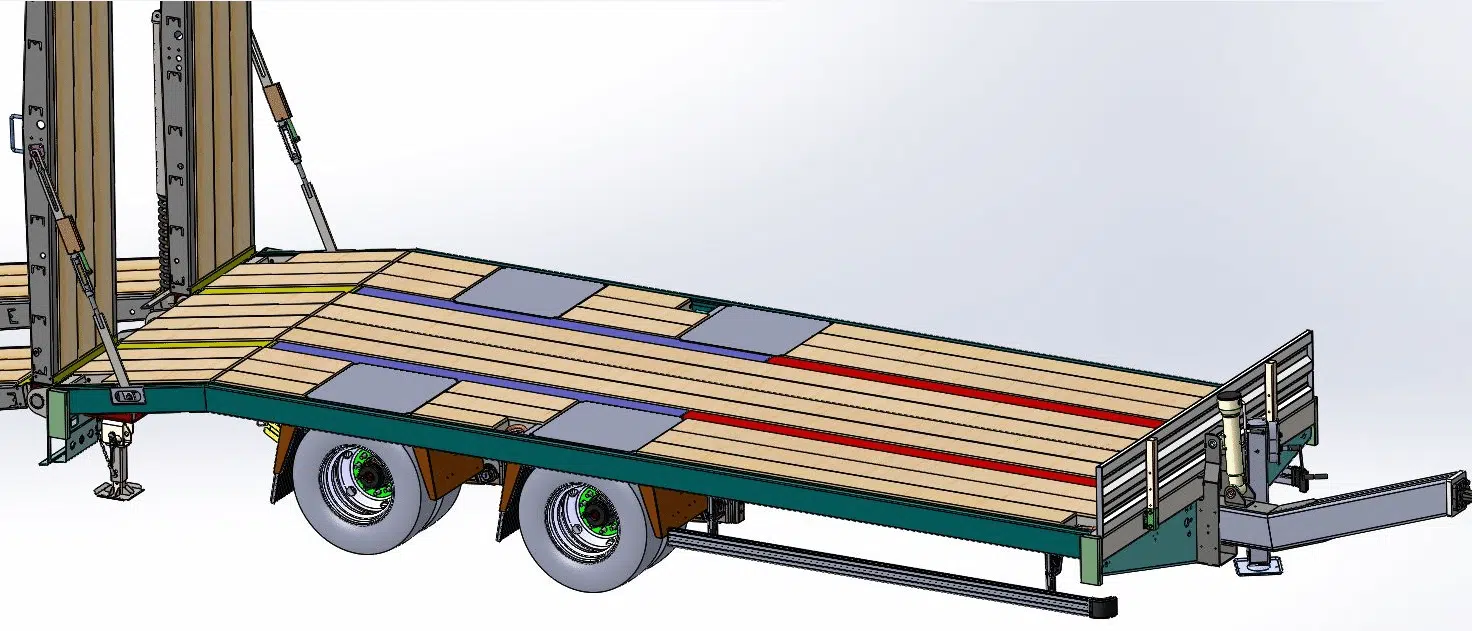

• Bridge: massive, welded chassis frame, hot-dip galvanized, with through-bolted cross members for maximum stability, wheel covers made of steel checker plate, smooth outer frame, without lashing holes, Flooring made of 40 mm softwood planks, end wall 400 mm hot-dip galvanized steel, pluggable
• Rear loading area sloped
• Load securing4 pairs of lashing points, 10 tons each, recessed in the bridge floor; 8 pairs of lashing points, 2 tons each, in the outer frame
• supportReinforced 12-ton gearbox support winch with load and high-speed gears, 2 telescopic folding supports on the left and right at the rear of the vehicle.

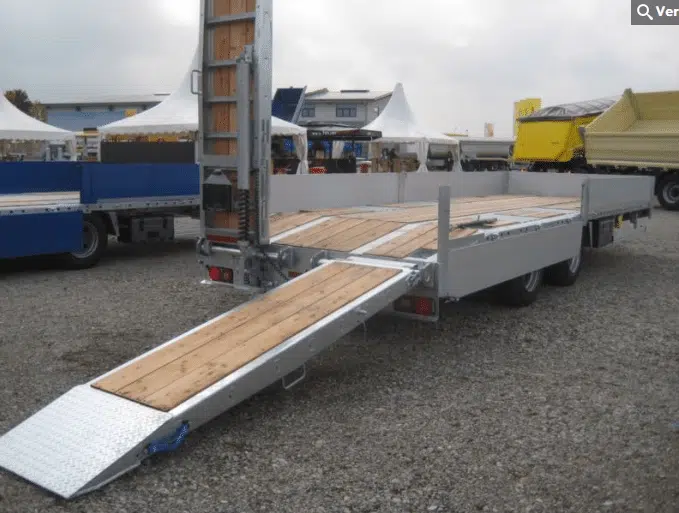

• Ramps: 2 heavy-duty, foldable, galvanized steel ramps, laterally adjustable, ramp lifter with 1 spring-loaded lifting mechanism per ramp, ramp securing with turnbuckle, ramp surface made of 50 mm softwood planks

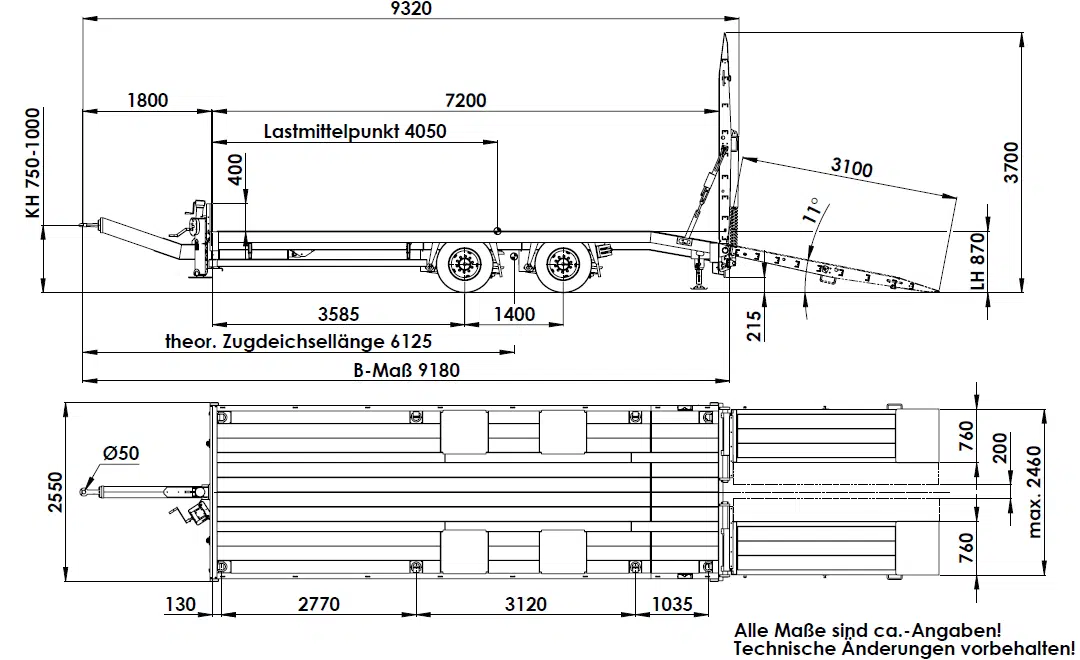

Technical data

Maximum permissible total weight (technical): 19000 kg

Vertical load: 1000 kg

Empty weight approx. 4500 kg

Payload with standard equipment approx. 14500 kg

Bridge interior dimensions (L x W): 7200 mm x 2460 mm

Front wall height approx.: 400 mm

Loading height with unloaded vehicle approx.: 870 mm

Coupling height when unloaded approx.: 750-1000 mm

Overall dimensions (LxWxH): 9380 mm x 2550 mm x 3700 mm

Tires: 235/75 R17.5, 8-fold

Ramp dimensions (L x W): 3100 mm x 760 mm

Approach angle: approx. 11°

Key figures: 60.3 kN/45.2 kN
