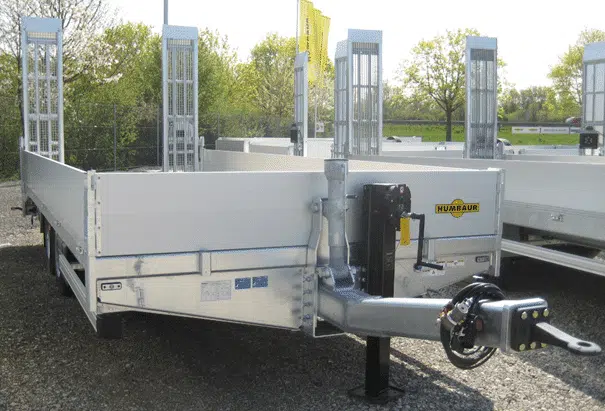

Humbaur heavy-duty trailer construction program HBT 106224, tandem overloader, sloping loading platform, total weight 10.5t•

Become a proud trailer owner today!

We deliver throughout Austria! We'll trade in your old one! Convenient partial or installment payments possible!

Equipment as a quality standard – here you can see your advantages

• Steel fenders with anti-spray mats
• Rigid side impact protection, from the beginning of the bridge to the first axle.
• 2 wheel chocks with holder
• Space for two-line license plate
• 3 pairs of lashing points (6 tons) recessed in the bridge floor, 7 pairs of lashing points (2 tons) in the outer frame
• with ramps with galvanized steel grating
• chassisAxles from renowned manufacturers, maintenance-free parabolic suspension with optimal load balancing, tires of the manufacturer's choice
• Brake systemCompressed air brake with release valve, automatic load-dependent brake ALB, test connections for compressed air system, connecting hoses with red-yellow coupling heads, automatic anti-lock braking system ABV, 4S/3M braking system with spindle parking brake
• Traction device: Central tube with screw-in eyelet Ø 40 mm, galvanized, infinitely adjustable via crank
• electrical system24V lighting system with multi-chamber taillights and LED side marker lights, 15-pin connector
• Bridge: solid, welded and hot-dip galvanized frame for optimal stability and safety, flooring made of 40 mm wooden planks, side walls made of anodized aluminum, foldable and removable, corner posts at the front and rear are pluggable
• Rear loading area angled
• supportReinforced 12-ton gearbox support winch with load and high-speed gears, folding support legs at the rear left and right of the chassis

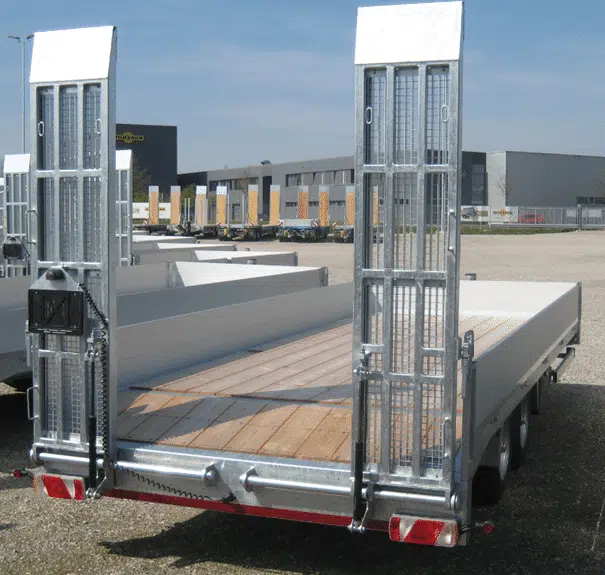

• Ramps: solid one-piece galvanized steel ramps, laterally sliding, ramp surface made of spruce wood planks, gas pressure ramp lifter

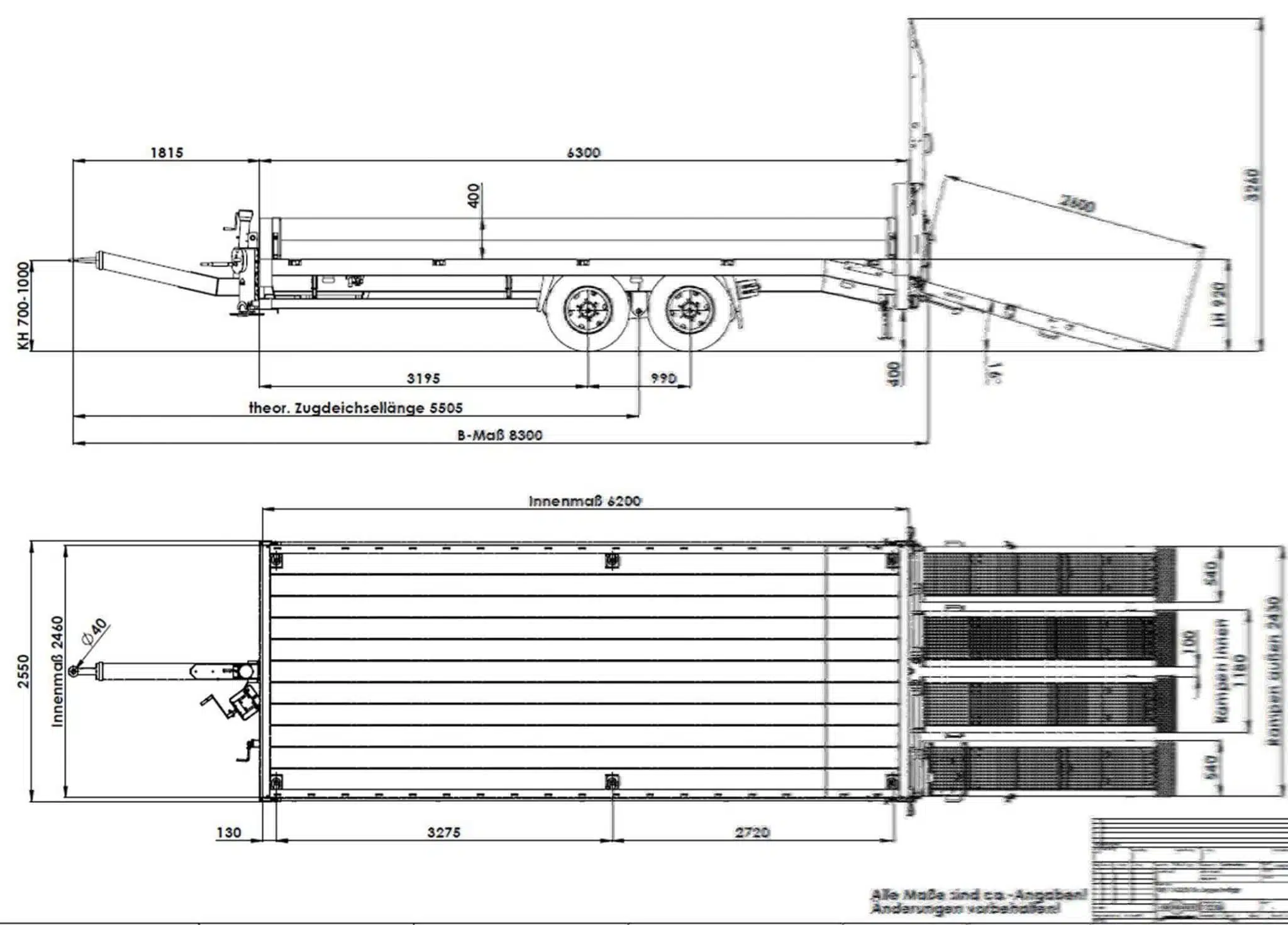

Technical data

Maximum permissible weight (technical): 10,500 kg

Vertical load: 500 kg

Empty weight: approx. 3,000 kg

Payload with standard equipment: approx. 7,500 kg

Internal dimensions: approx. 6,200 x 2,460 mm

Side wall height approx. 400 mm

Loading height with unloaded vehicle: approx. 920 mm

Free drawbar length: approx. 1,800 mm

Coupling height when unloaded: approx. 700 – 1,000 mm

Total: approx. 8,350 x 2,550 x 3,060 mm

Tires: 235/75 R17.5 (4-fold)

Ramp dimensions (length x width): approx. 2400 x 520 mm

Approach angle: approx. 16°

INCLUDED: Technically 11,900 kg permissible total weight (payload therefore approx. 9 t / in standard equipment)

Accesories:

Additional accessories are available at an extra cost.

Other versions and models available!

Hundreds of trailers in stock and available immediately!

You can enter our 24-hour trailer showroom anytime from Monday to Sunday.

All information is provided without guarantee, subject to errors, misprints and typos.
Prices shown are for items in stock; new orders are subject to price changes.
Prices are valid for Austria (incl. 20 % VAT) and may differ in other countries.
Stock photos; the actual product may differ from the image.
Attention: Subject to prior sale and changes! / Images may include/show accessories/options available at an additional cost!
All prices exclude accessories!

Collection at the factory D-86368 – Gersthofen
Surcharge for collection in Poggersdorf €1559,- incl. VAT.
COC documents €300,- incl. VAT.
