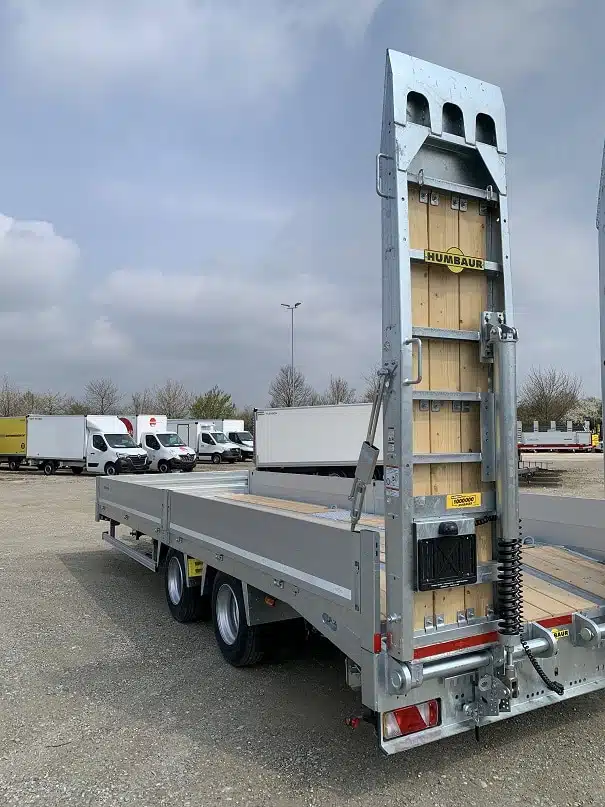

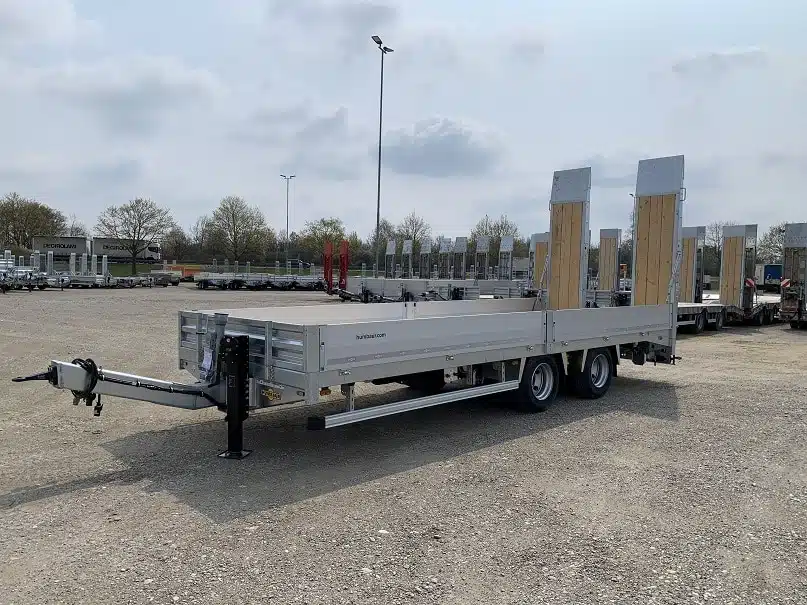

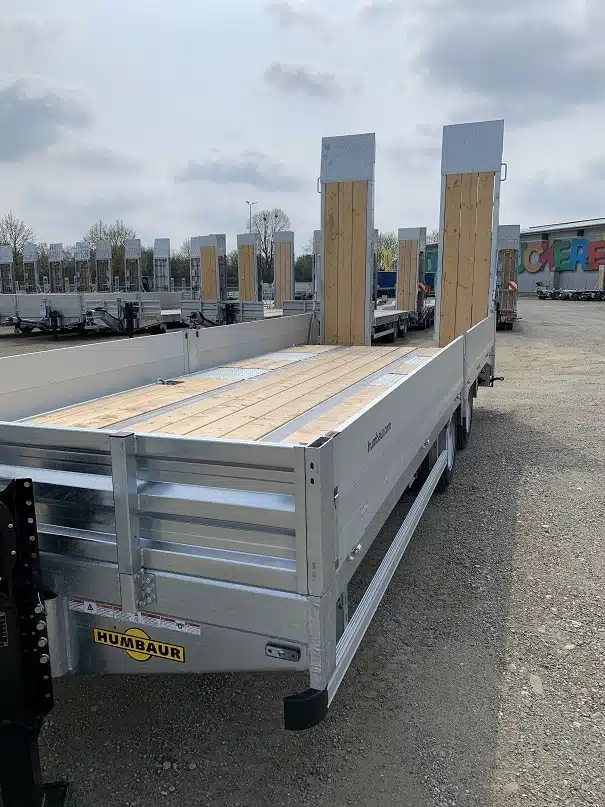

HBTZ 216524 BS, 21 t, tandem flatbed trailer with twin tires, planks standing, loading platform sloping heavy-duty trailer•
HBTZ 216524 BS, 21 t, Tandem Hochlader mit Zwillingsbereifung, Bohlen stehend, Ladefläche abgeschrägt Schwerlastanhänger• - Image 2
HBTZ 216524 BS, 21 t, Tandem Hochlader mit Zwillingsbereifung, Bohlen stehend, Ladefläche abgeschrägt Schwerlastanhänger• - Image 3
HBTZ 216524 BS, 21 t, Tandem Hochlader mit Zwillingsbereifung, Bohlen stehend, Ladefläche abgeschrägt Schwerlastanhänger• - Image 4
HBTZ 216524 BS, 21 t, Tandem Hochlader mit Zwillingsbereifung, Bohlen stehend, Ladefläche abgeschrägt Schwerlastanhänger• - Image 5
,

HBTZ 216524 BS, 21 t, tandem flatbed trailer with twin tires, planks standing, loading platform sloping heavy-duty trailer•

€ 35.990,00 € 38.867,00 VAT included.

Print Friendly, PDF & Email

Become a proud trailer owner today!

We deliver throughout Austria! We'll trade in your old one! Convenient partial or installment payments possible!

Basic equipment as a quality standard – here you can see your advantages

  • SAF low-loader axles with enclosed S-cam brakes
  • Air suspension with raise/lower function
  • Central axle lift for 1st axle
  • twin tires
  • Tires of the manufacturer's choice on steel rims
  • 4 pairs of lashing points, 10 t capacity, recessed in the bridge floor
  • 7 pairs of lashing points, 2 t, in the outer frame
  • EBS braking system with stability program according to ECE directive
  • 2 non-interchangeable coupling heads red/yellow ISO 1728
  • Spring-loaded parking brake
  • Reinforced 12 t gearbox support winch with load and high speed gear
  • 2 telescopic folding supports on the left and right at the rear of the vehicle
  • 24-volt lighting system with multi-chamber taillights and LED side marker lights
  • 15-pin connector for lighting
  • 2 folding steel ramps, split in the middle, galvanized, laterally sliding
  • Ramp lifter (1 spring lifter per ramp)
  • Ramp securing with turnbuckle
  • Ramps made from 50 mm softwood planks
  • Drawbar with screw tow eye Ø 50 mm, galvanized
  • Galvanized steel fenders with anti-spray system
  • Side underrun protection up to the 1st axle, foldable
  • Contour marking on the side and rear
  • 2 wheel chocks with holder, space for two-line license plate
  • Massive, welded chassis frame, hot-dip galvanized
  • Rear loading area sloped
  • Flooring made of 50 mm softwood planks



Technical data

  • Maximum permissible total weight 21000 kg
  • Payload approx. 16300 kg
  • Overall dimensions 8700 x 2550 x 3710 mm
  • Internal dimensions 6550 x 2560 x 400 mm
  • Loading height 870mm
  • Wheelbase: 1810 mm
  • Coupling height 700-1000 mm (unladen)
  • Tires 235/75 R 17.5 inch
  • Ramps 3100 x 760 mm
chassis SAF low-loader axles with enclosed S-cam brakes, air suspension with raise/lower function; central axle lift for the 1st axle; wheelbase 1810 mm; twin tires, tires of the manufacturer's choice;
Brake system EBS braking system with stability program according to ECE directive; spring-loaded parking brake; 2 non-interchangeable red/yellow front coupling heads ISO 1728;
EBS connector ISO 7638; Note: Towing vehicle must have an ABS/EBS connection;
Traction device Galvanized drawbar with DIN screw drawbar eye Ø 50 mm; infinitely adjustable via reinforced height adjustment;
electrical system 24-volt lighting system with multi-chamber taillights and LED side marker lights; 15-pin connector for lighting;
Bridge Solid, welded chassis frame, hot-dip galvanized; with through-bolted cross members for maximum stability; wheel covers made of steel checker plate; reinforced outer frame;
Flooring made of 50mm softwood planks; end wall 400mm galvanized steel, pluggable;
Load securing 4 pairs of lashing points recessed in the bridge floor; 7 pairs of lashing points in the outer frame (lashing capacity 2000 kg)
support Reinforced 12 t gearbox support winch with load and high-speed gears; 2 telescopic folding supports on the left and right at the rear of the vehicle;
Ramps 2 heavy-duty, galvanized, laterally sliding, folding steel ramps; ramp lifter with 1 spring-loaded lifting mechanism per ramp; ramp securing device with turnbuckle; ramp surface made of 50mm softwood planks;
equipment Steel mudguards (8-fold) with anti-spray mats; 2 wheel chocks with holders; foldable side underrun protection, from the beginning of the bridge to the first axle and between the axles; contour markings on the sides and rear;
Space for a two-line license plate on the left ramp;



Hundreds of trailers in stock and available immediately!

You can enter our 24-hour trailer showroom anytime from Monday to Sunday.



All information is provided without guarantee, subject to errors, misprints and typos.
Prices shown are for items in stock; new orders are subject to price changes.
Prices are valid for Austria (incl. 20 % VAT) and may differ in other countries.
Stock photos; the actual product may differ from the image.
Attention: Subject to prior sale and changes! / Images may include/show accessories/options available at an additional cost!
All prices exclude accessories!
