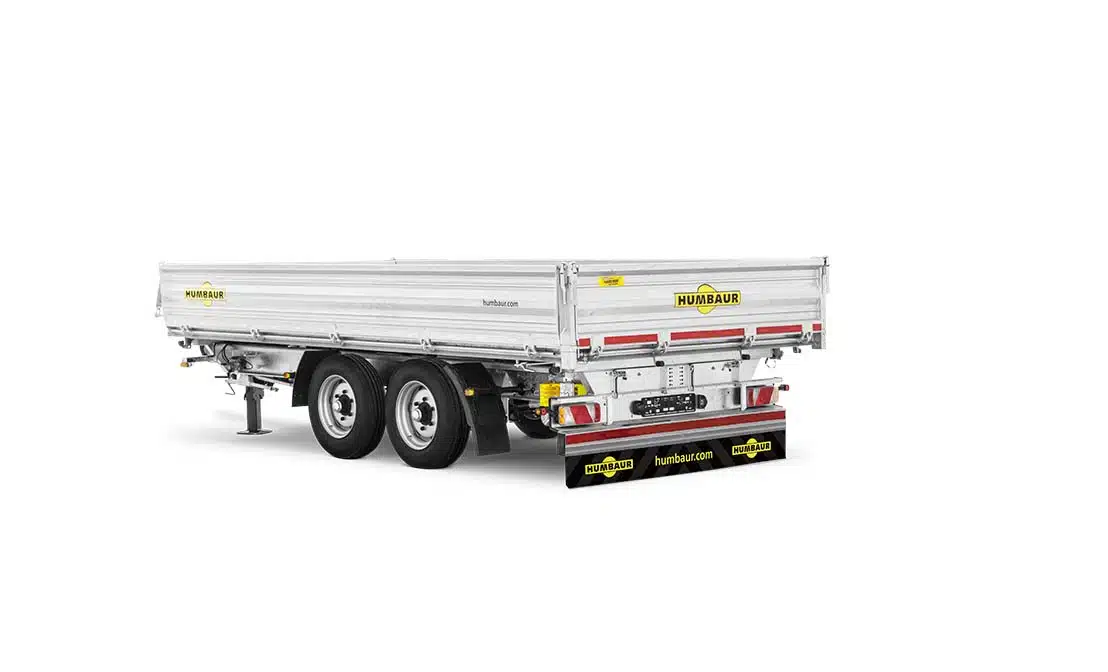

Humbaur heavy-duty trailer HTK 105024, 11.9 t total weight, tandem three-way tipper 3S tipper, with ramp shaft•

Become a proud trailer owner today!

We deliver throughout Austria! We'll trade in your old one! Convenient partial or installment payments possible!

Basic equipment as a quality standard – here you can see your advantages

• Axles from well-known manufacturers;
• Maintenance-free parabolic suspension with load compensation;
• Tires of the manufacturer's choice on steel rims;
• ABS braking system according to ECE directive, with ALB function;
• Spindle locking brake;
• 2 interchangeable coupling heads red/yellow ISO 1728;
• Drawbar with DIN screw drawbar eye Ø 40mm, galvanized,
• Coupling height infinitely adjustable via crank;
• 24V lighting system with multi-chamber taillights and LED side marker lights;
• 15-pin connector for lighting;
• Solid, welded and hot-dip galvanized frame;
• Lockable storage compartment integrated into the frame, for 2 optional loading ramps;

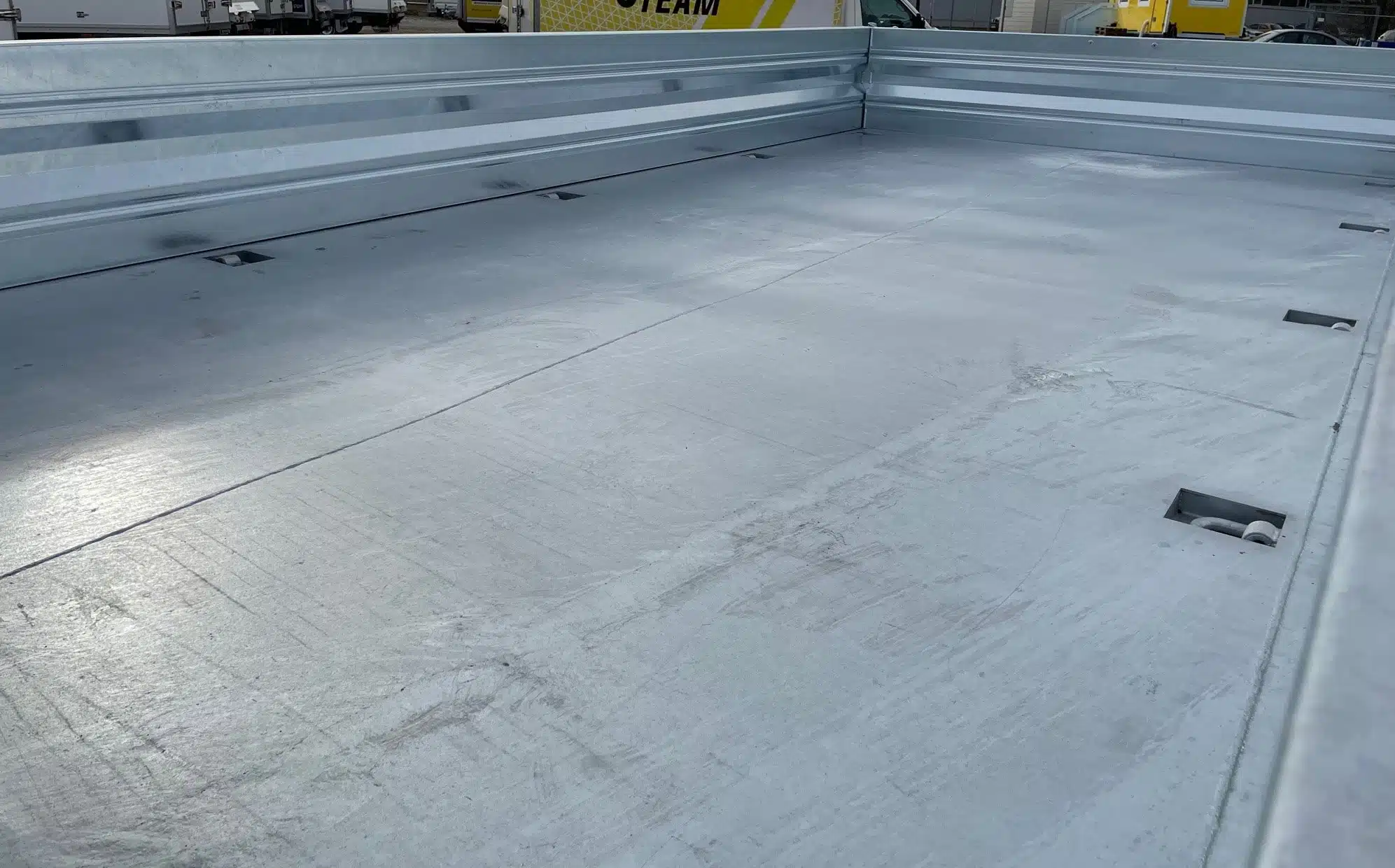

• Bridge floor made of 4 mm fine-grained steel;
• Bridge frame with trough-shaped girders, hot-dip galvanized (due to hot-dip galvanizing, an optically stable finish is achieved).
  Wave formation possible);
• 4 ball tilting bearings with 2 anti-interchangeable tilting bearing bolts;
• Laser-welded quality steel sideboards, 500mm high;

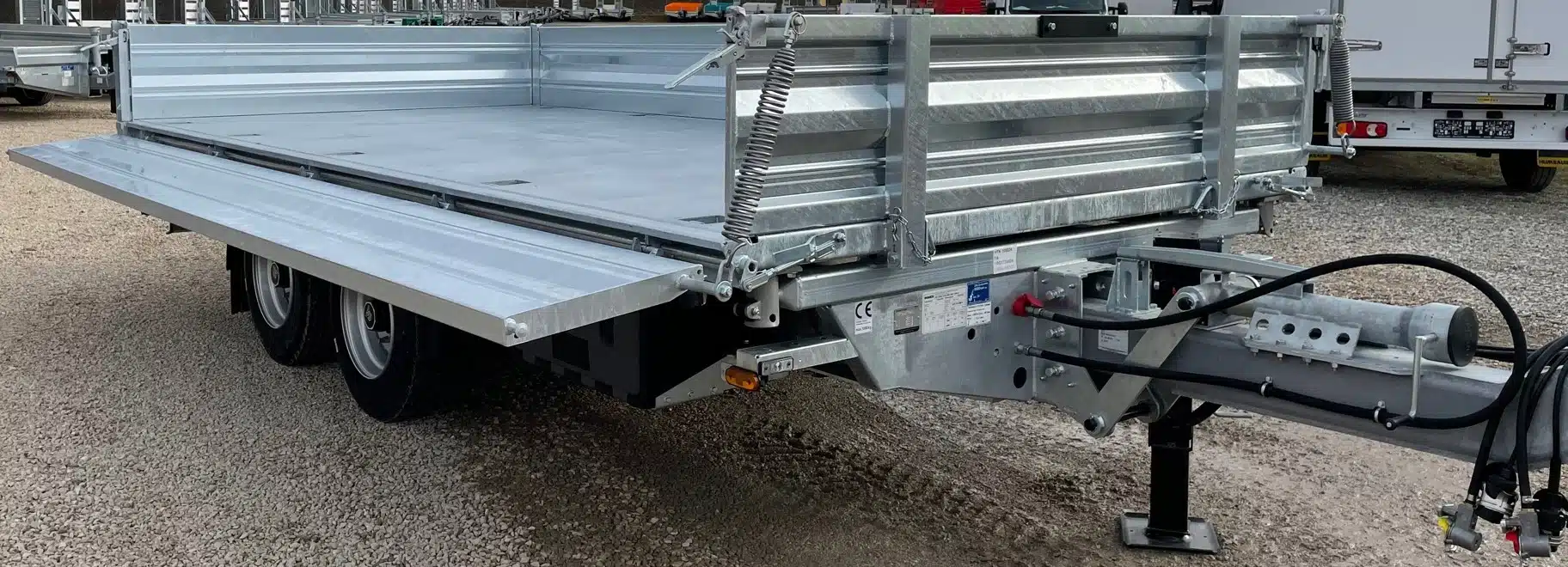

• Side and rear side panels fold down, are removable and pivoting, and are screwed in place with a central locking mechanism;
• Finishing of the side walls completely hot-dip galvanized;
• Rear stakes galvanized and bolted;
• Solid steel front wall, galvanized, folds down to the front;
• Side wall lifting springs on the side walls;
• Reinforced 12 t gearbox support winch with load and high-speed gears;
• 2 telescopic folding supports on the left and right at the rear of the vehicle
• Hydraulic three-way tipping mechanism with control
  via the towing vehicle (max. 200 bar, up to 90 l/min);
• Five-stage cylinder with stroke limiter and safety cables;
• Hydraulic quick-release coupling SVK BG3 as a single-circuit connection;
• Front and rear axle mudguards with splash guard system;
• 2 wheel chocks with holder;
• Contour marking on the sides and back;
• Space for a single-line license plate;

Technical data

Internal dimensions: approx. 5,030 mm x 2,420 mm x 500 mm

Overall dimensions: approx. 7,000 mm x 2,550 mm x 1,500 mm

Permissible total weight: 11,900 kg

Payload: approx. 8,750 kg

Wheelbase: 990 mm

Tires: 235/75 R17.5 inch

Loading height: approx. 990 mm

Drawbar length: approx. 1800 mm

Coupling height: approx. 660-900 mm

Rear tilt angle: approx. 48°

Lateral tilt angle: approx. 45°

5 pairs of lashing rings, 3000 kg per lashing point

Lashing rings recessed in the bridge floor

All information is provided without guarantee, subject to errors, misprints and typos.
Prices shown are for items in stock; new orders are subject to price changes.
Prices are valid for Austria (incl. 20 % VAT) and may differ in other countries.
Stock photos; the actual product may differ from the image.
Attention: Subject to prior sale and changes! / Images may include/show accessories/options available at an additional cost!
All prices exclude accessories!

Other versions and models available!
