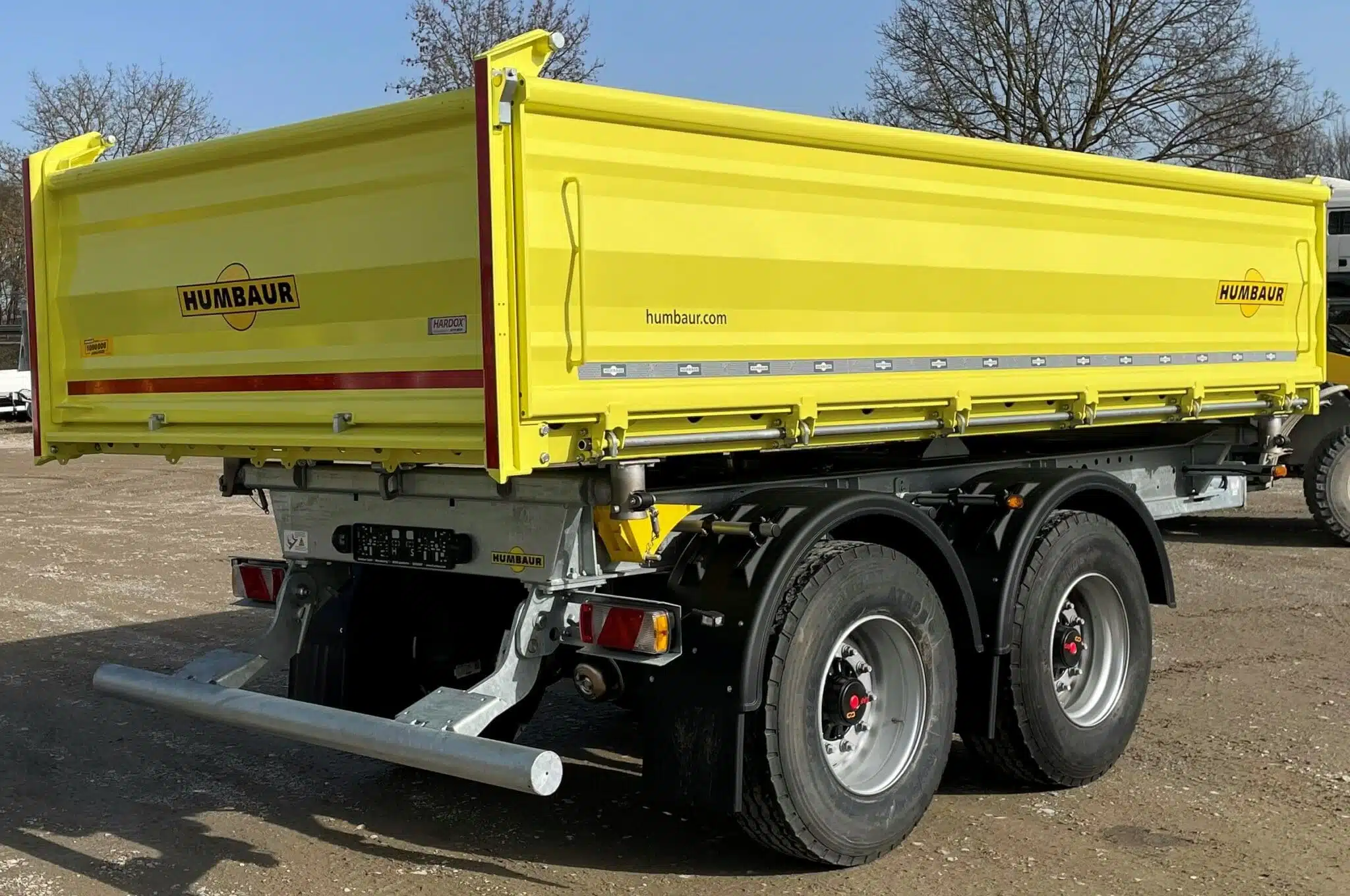

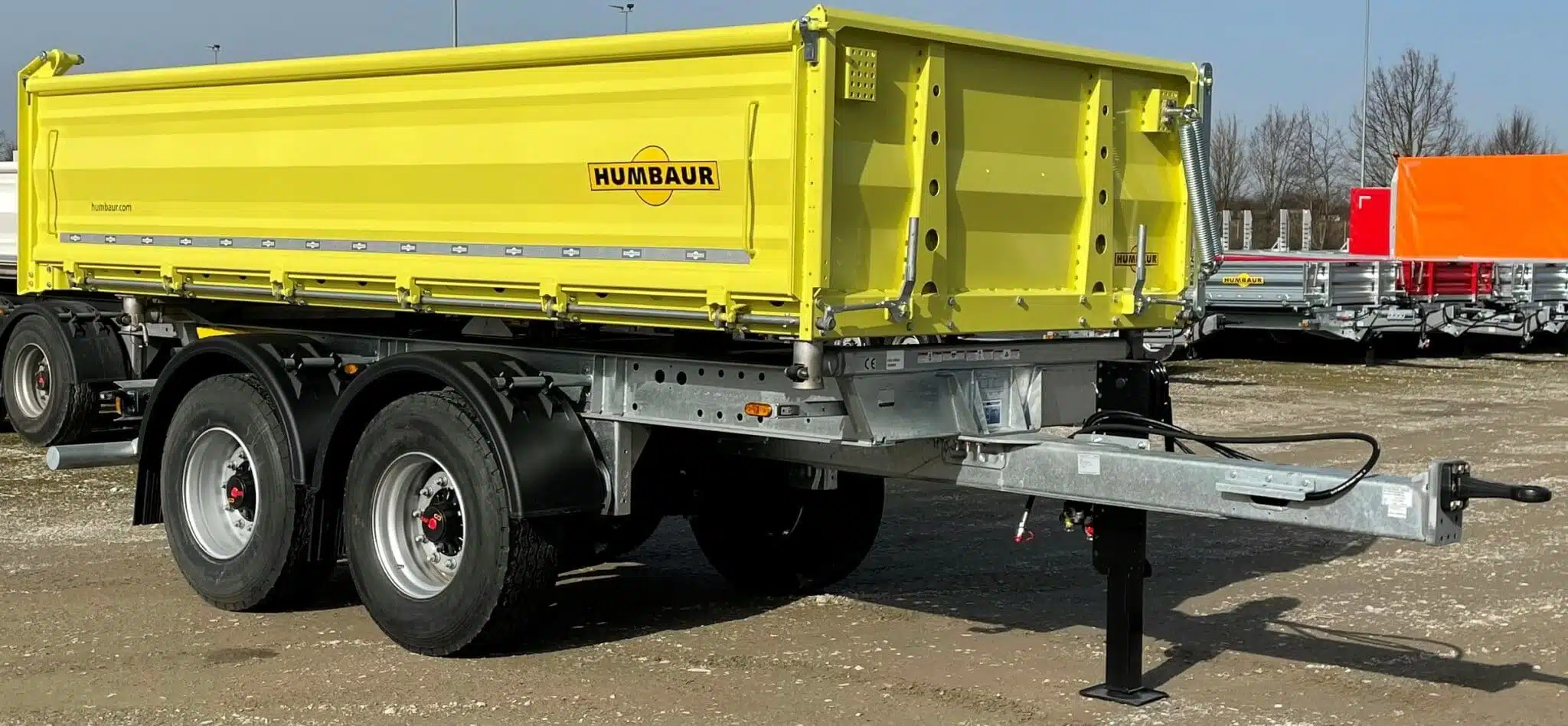

Humbaur heavy-duty trailer HTK 195024 gravel tipper SAF drum, heavy-duty tipper, painted sideboards

Net price €29,904 plus shipping costs!



Become a proud trailer owner today!

We deliver throughout Austria! We'll trade in your old one! Convenient partial or installment payments possible!



Basic equipment as a quality standard – here you can see your advantages

• 2 pairs of semicircular fenders;
• Galvanized, rigid underride guard;
• 2 wheel chocks with holder;
• Contour markings: white on the sides, red on the back;
• Space for a single-line license plate;
• Refinement
• Attachments galvanized or black coated;

Axles

SAF axles with drum brakes;



suspension

Air suspension with shock absorbers,

electronically controlled for tilt stabilization;



Tires

Tires of the manufacturer's choice;



Brake system

EBS braking system with stability program according to

ECE Directive;

Spring-loaded parking brake;

2 non-interchangeable red/yellow coupling heads at the front

ISO 1728;

EBS connector ISO 7638;

Note: Towing vehicle must be equipped with an ABS socket.

be equipped;



Traction device

Galvanized drawbar, screwed in, with DIN standard

Screw tow eye Ø 50 mm;



electrical system

24-volt lighting system with multi-chamber taillights and

LED side marker lights;

15-pin connector for lighting;



Frame

Massive, welded chassis frame,

hot-dip galvanized;



Bridge

Bridge floor made of 4 mm high wear-resistant steel,

HB 450;

Bridge frame with longitudinal and transverse bracing

for high stability;

4 ball tilting bearings with 2 non-interchangeable locking mechanisms

Tilting bearing bolts;



Sideboards

Fixed end wall made of steel, height 800mm;

Right-hand side panel Hardox 800×2.5mm, pivoting with

Central locking;

Left-hand side panel Hardox 800×2.5mm, foldable with



Spring lifter;

Back panel Hardox 800×2.5mm,

impacting between two stable stakes,

mounted on a pendulum, with automatic

Tailgate release;



Refinement

Tipping bridge and superstructure KTL and painted,

in RAL 9006 white aluminum;



support

Reinforced 12 t gearbox support winch with load and

High speed;



hydraulics

Hydraulic three-way tipping mechanism with control

via the towing vehicle (max. 200 bar);

Three-stage telescopic cylinder,

Stage 1: Oxinit-coated, Stages 2 and 3

salt bath nitrated,

with stroke limitation and safety ropes;

Hydraulic quick-release coupling SVK BG3 as

Single-circuit connection;





Technical data:

Internal dimensions: approx. 5,010 mm x 2,420 mm x 800 mm

Overall dimensions: approx. 7,150 mm x 2,550 mm x 2,450 mm

Permissible total weight: 19,000 kg

Payload: approx. 14,900 kg

Wheelbase: 1410 mm

Tires: 385/65 R22.5 inch

Loading height: approx. 1,520 mm

Drawbar length: approx. 1900 mm

Coupling height: approx. 850-950 mm

Approach angle: approx. 1°

Rear tilt angle: approx. 50°

Lateral tilt angle: approx. 50°

Plank length: approx. 1 mm

Plank width: approx. 1 mm



All information is provided without guarantee, subject to errors, misprints and typos.
Prices shown are for items in stock; new orders are subject to price changes.
Prices are valid for Austria (incl. 20 % VAT) and may differ in other countries.
Stock photos; the actual product may differ from the image.
Attention: Subject to prior sale and changes! / Images may include/show accessories/options available at an additional cost!
All prices exclude accessories!
